Before we get into how Coupler works, let’s see what the user experience looks like. I’m going to focus on the key steps, since the point of this article is to help you understand what we’ve built and how it works. For reference, Getting started with CDC streams is the place to go.

First, you create a KDS stream:

aws kinesis create-stream \
  --stream-name my-cdc-stream \
  --stream-mode-details StreamMode=ON_DEMAND \
  --max-record-size-in-kib 10240

Then, you tell DSQL where to publish it:

aws dsql create-stream \
    --cluster-identifier cluster-id \
    --target-definition '{"kinesis":{"streamArn":"kinesis-stream-arn","roleArn":"role-arn"}}' \
    --ordering UNORDERED \
    --format JSON \
    --tags '{"Name":"my-cdc-stream"}'

You will also need to explicitly grant DSQL the permission to write to this stream. I know that IAM is sometimes a barrier to getting started on AWS, but I really like that AWS services don’t have some kind of special access to your data. All permissions are explicit; you’re in control.

After setting this up, DSQL will start to deliver change events to your KDS stream, and you can do whatever you want with them.

Now, you’re probably wondering.. “what’s in the stream?” - before we get into that, let’s talk about how the Coupler works.

When you create a DSQL stream, you’re really sending an instruction to the Coupler to start to tail your cluster’s journal. This is how the Coupler learns about transactions:

Seems simple enough, but the reality is much more complex. A cluster running at high throughput may have many journals. DSQL will add and remove journals transparently to ensure you have enough commit bandwidth. The journal has many subscribers. This means the Coupler would need to connect to multiple journals to ensure it sees everything, and deal with journals coming and going. If it gets it wrong, it could miss transactions. If the Coupler is unavailable for a period of time, then what? Do we need to buffer in the journal, potentially slowing the system down or causing an outage?

This is a really hard problem. Fortunately for us, we’ve already solved it. Remember that DSQL’s storage layer is also subscribing to the journal in this picture - that’s how DSQL is serving reads for SELECT queries. DSQL already has a high throughput low latency subscription fan-out service. I haven’t detailed it yet on this blog, but for now you can think of it as a magical box that gives the Coupler everything it wants:

The ASCII spray can was the best I could come up with.

Later in this article, we’ll talk about scaling the Coupler. For now, simply understand that we’re building on something that already exists, and is downstream from the commit path. This magical fan-out service already has to deal with slow or unavailable storage hosts, and all the other hard problems that we’ve solved when we fully decoupled the read and write paths of our system.

This is great. It means that we can truly offer CDC in a way that never breaks the database. We can add as many streams as we need. Every investment we make to lower latency or cost pays off for our storage layer as well as for CDC (and other things we’ll be releasing in the future).

That’s the input side, let’s talk about the output next.

The DSQL journal is formatted in a way that we (the DSQL team) chose. We picked a serialization format and ordering semantics. We optimized for speed, for cost. And, over time, we’ve tweaked that format. We want to be able to continue to iterate on it under our own steam.

Meanwhile, customers want what customers want. And they want it where they want it. This, at some level, is the core job of the Coupler - to take data in the DSQL journals and put it somewhere else, in some other format.

Conceptually, the Coupler supports multiple sinks: destinations where we can publish to. Each sink has different capabilities - what it can support, or how it wants to be used. Does it allow for different formats? Does it want individual records, or does it want big batches? What about ordering, or de-duplication?

The Coupler can be configured to handle different sinks and their quirks - and this configuration is expressed in our create-stream API.

The simplest example of this is --format JSON, which controls how Coupler serializes its output. As already mentioned, our first sink is KDS. KDS allows you to put whatever blob you want, and so we could conceptually support CSV or XML (I know.. this is what you all truly want, right?). Other sinks may require a specific format.

Another example is --ordering UNORDERED. KDS does have ordering capabilities, but in our experience it works best when you build your consumer around an unordered stream. This forces you to be idempotent early in your implementation, which is not actually that difficult to accomplish and is often necessary anyways.

In the future, we will offer additional ordering options. Maybe you want total order, or maybe you just want total order per-row. Maybe those orderings will be supported on KDS, or not. It depends on what customers ask us to prioritize. Providing Feedback is where you want to go. Discord if you can; our engineers love to hear from customers directly.

You’ll notice that both format and ordering are required parameters with only one option. This may be a little weird at first blush, but it’s intentional. We’re not sure what the defaults should be, and it’s a breaking change to change defaults. As we add additional CDC capabilities, you should expect to see more options show up, and we might even pick a default.

The Coupler is also capable of filtering or other types of munging of transactions before it publishes to the sink.

Maybe you only want to see changes for a specific table, or only tables in a specific schema. With our initial release, you can’t specify filters yet, but they’re coming.

Another question is what should go in the bag? Sinks will often define some kind of limit. With KDS, you can increase the limit of a record to 10MiB. Now imagine you have larger rows, and many rows in a transaction. You might not be able to fit the entire transaction in a single record. Or, customers might want to keep their record size smaller.

So, should we publish transactions, or individual rows? What if a row is 2MiB and the stream is configured to only be 2MiB? Where does the metadata go? We recently shipped support for JSON with automatic and transparent compression. What if the JSON decompresses to be large?

Coupler is capable of dealing with all these problems. For example, it can chunk up large rows into multiple KDS records. Or, we could sideline large rows into an S3 bucket and write a pointer to that object in the stream instead.

Again, not all this functionality is exposed through the API today. This is an engineering blog; I’m just here to tell you how it works. Because I think it’s cool.

I don’t want to get too into scaling in this article, partly because it’s a little involved, and partly because it’d be way easier to understand Coupler scaling if I’d had the time to write down how the rest of DSQL already scales.

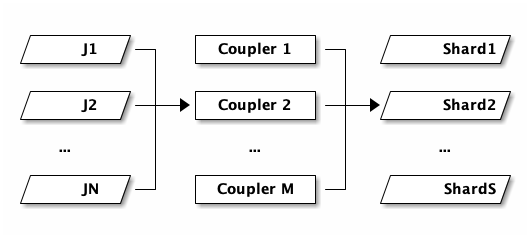

So this is going to be a little hand-wavy, apologies. Here’s the picture:

N journals on the left, M Couplers in the middle, S KDS shards on the right. The three counts move independently. As writes pick up, DSQL adds more journals. As CDC throughput picks up, the control plane adds more Couplers. As your KDS stream needs more capacity, KDS adds more shards. None of these have to match. In the case of KDS, shards are small, so there many be only a single Coupler feeding hundreds of shards.

• Couplers use leader election to maintain a designated writer for a portion of the keyspace. Each election group is replicated across three Availability Zones.
• Couplers observe stats on their portion of the keyspace and report this information to the control system periodically.
• As traffic increases or decreases on a cluster, the control system reshards portions of the keyspace. The reshard sequence uses the same system as leader election for the handoff. Couplers form a DAG which is contiguous over the entire keyspace at any point in time.
• The Coupler fleet scales independently from commit and storage.

That last point is worth stopping on. The fleet that commits writes, the fleet that serves storage reads, and the fleet that publishes to sinks are all separate. If you have a workload that does very heavy CDC, your CDC traffic doesn’t push back on your cluster’s write throughput.

The create-stream API is, in a sense, the front door for all of this. Calling it asks the control plane to set up a Coupler group, point it at the right portion of the journal, and configure the destination. Everything else follows.

CDC to Kinesis is the first thing we’ve shipped on top of Coupler. We have a long list of things we’d like to build next: more sinks, filtering by table, schema projections, richer transformations. As usual, we’re going to ship iteratively, and we’d much rather build what customers ask for than what we think we should build. If there’s a flavor of CDC you want, please let us know.

In this post we’ve taken a tour of Coupler, the service that publishes DSQL change data out to external sinks. Coupler subscribes to the journal just like storage does, but instead of materializing rows for SQL, it filters and reformats records and publishes them to a sink. Today, that sink is Kinesis.

Coupler is partitioned over the keyspace and scales independently from commit and storage. If your workload does heavy CDC, the CDC fleet handles it on its own without pushing back on the database. And because the journal already provides an ordered, durable, horizontally-scaling log, we get to build CDC, and the things that come after it, on a foundation that’s been carrying DSQL since the beginning.

Thanks for reading!
